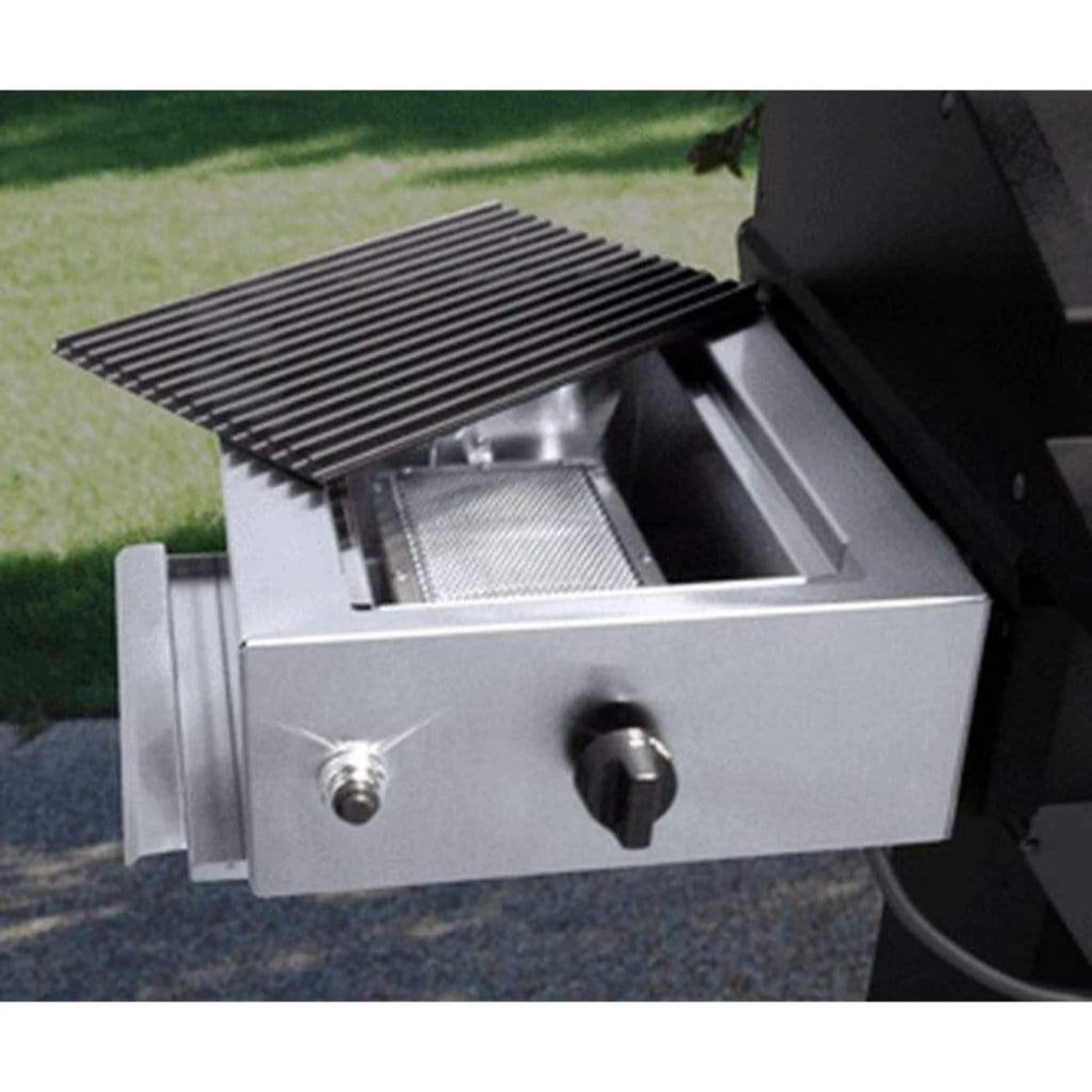

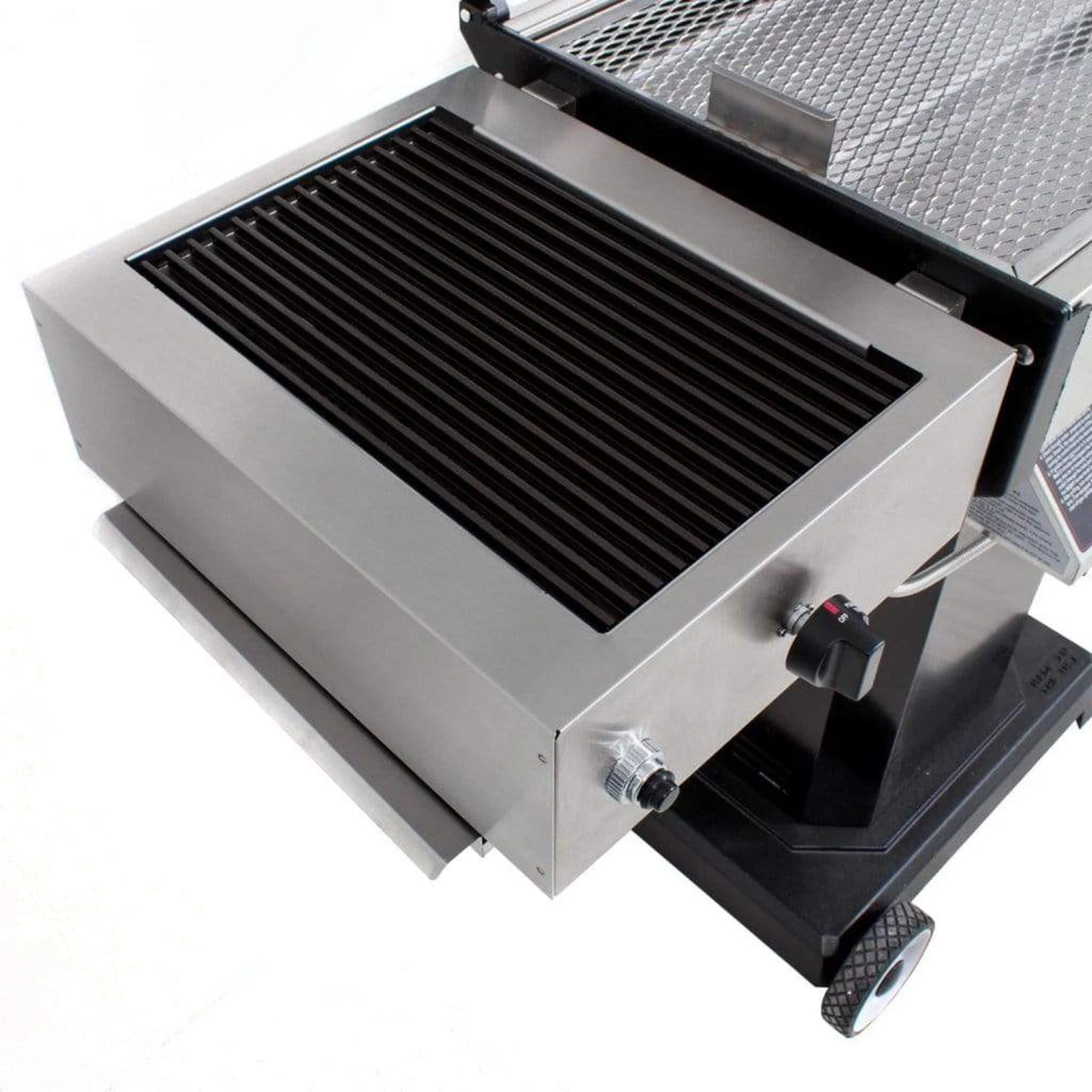

This optional stainless steel unit has a rust-free, anodized aluminum SearMagic® cooking grid that heats up faster and cooks foods at a uniform temperature. The reversible grid provides increased cooking versatility allowing you to cook a greater variety of foods. The electronic ignition ensures easy and reliable starts while the pull-out drip tray allows for easy cleaning.

What’s Included

• SearMagic 18″ Infrared Liquid Propane Gas Side Burner
• Pull-out drip tray

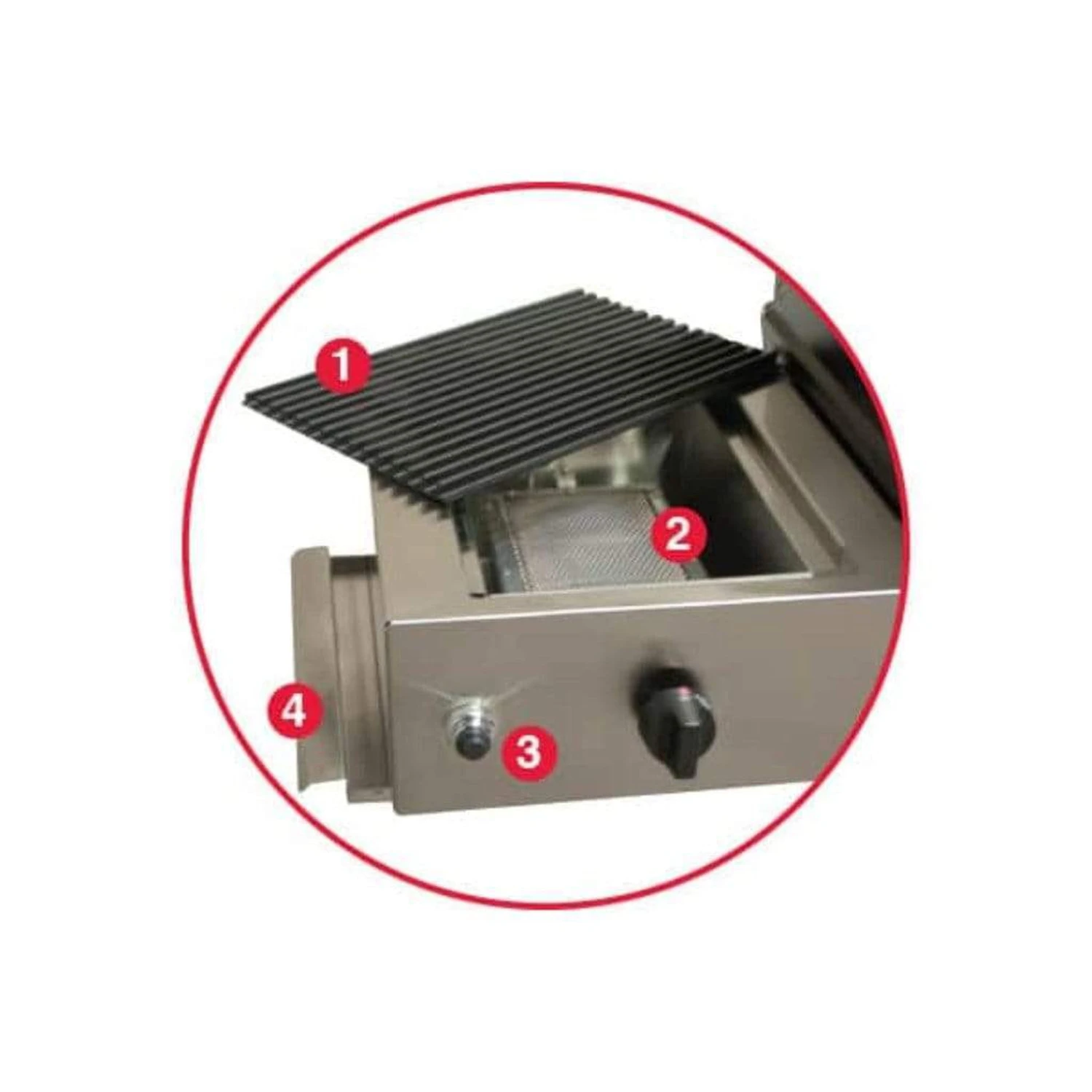

Features

• Compatible with all Phoenix Grills Models
• The 12,500 BTU infrared sear zone is designed to turn your Phoenix Grill into a Complete Grilling System
• SearMagic Grids are high-performance, rust-free, anodized aluminum cooking grids that heat up faster and cook foods at a uniform temperature.  The reversible grids provide increased versatility with a ribbed side for grilling steaks, chops, burgers, and ribs, branding them with sear lines, while the smooth side is ideal for cooking delicate foods such as fish, seafood, and vegetables.

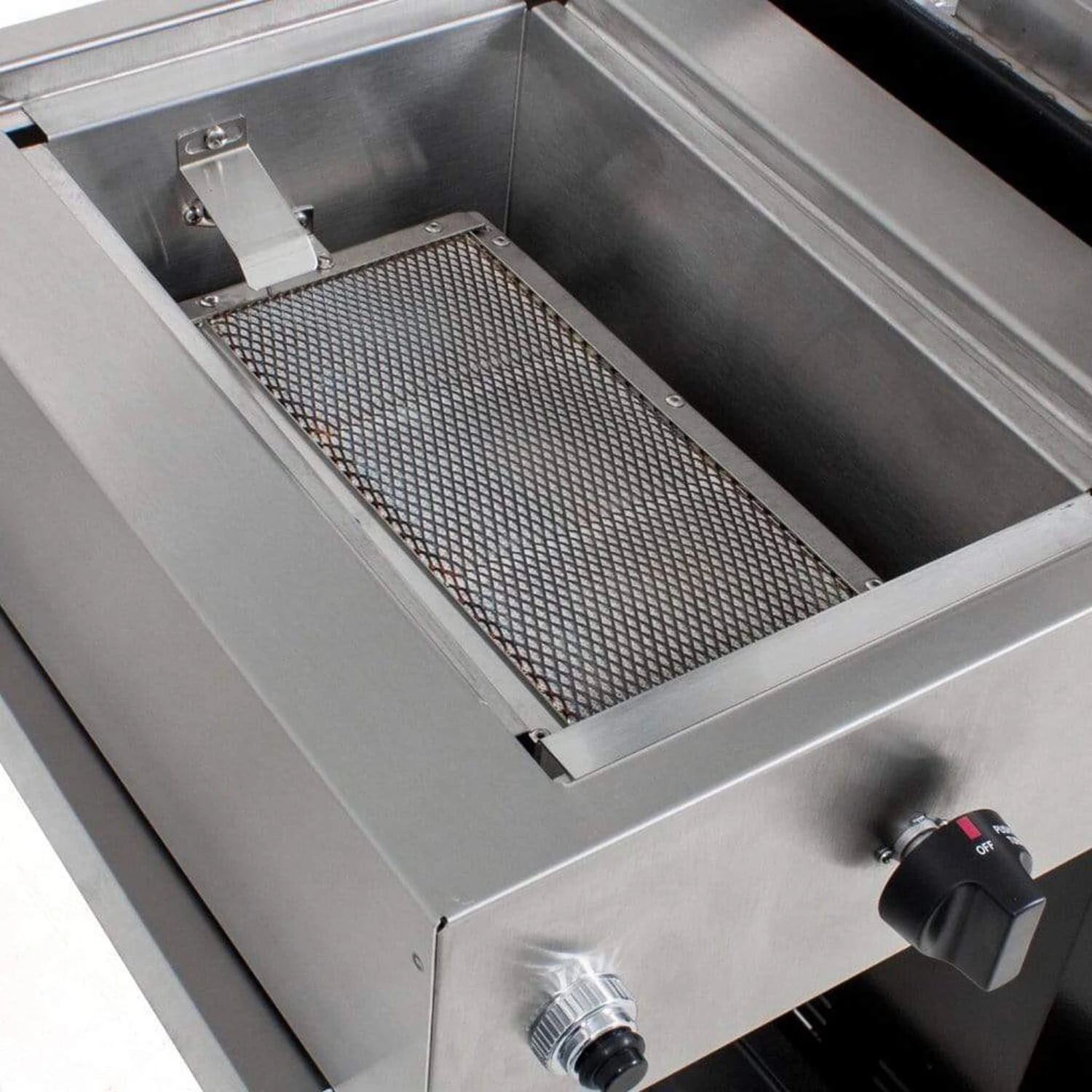

• The ceramic infrared burner heats up fast for greater cooking versatility and reduces flare-ups by vaporizing juices instantly.
• Electronic ignition for easy & reliable starts
• Pull-out drip tray for easy cleaning

Specifications

Item Number	PFMGSEAR-P
UPC	097524197538
Fuel Type	Liquid Propane Gas
Heat Output	12,500 BTUs
Overall Dimensions	22.5 ” (W) x 20″ (D) x 10.5″ (H)
Cutout Dimensions	18″ (W) x 14.5″ (D) x 7″ (H)
Weight	25 lbs

Warranty

	Phoenix riveted grills have a limited 10-year warranty against rust-through covering the grill top and bottom, control panel, stainless steel column and base, drop-down shelves, cooking grid, and cast aluminum drip pan.
	A 1-year limited warranty against rust-through covering ignition system, gas valves, knobs, thermometer, grease bucket, wheels, casters, and handle end caps. Grills in a commercial, community or multi-tenant applications will have a 1 year warranty on all parts.
	30-day warranty on paint.

What is not covered?

• Surface Corrosion and Discoloration
• Transportation and shipping cost
• Labor for replacement or repairs
• Damage from accident, misuse, alteration, abuse, improper installation or storage
• Removal and re-installation costs
• Finishes on surface that are damaged by improper installation, improper storage, accident, misuse, abuse or alteration • Inoperable due to improper installation or storage
• The costs of a service call to diagnose a problem
• All warranties are non-transferable and apply only to the original purchaser
• Warranties are null and void if grills are put into commercial or community use.
• This warranty does not imply or assume any responsibility for consequential damages that might result from use, misuse, or improper installation of this cooking appliance.
• This warranty does not cover claims, which do not involve defective workmanship or materials.

Bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period.

Frequently Asked Questions

Will the cast aluminum drip pan fit the original Phoenix Grill? Yes, the new cast aluminum drip pan has the same specs as the original drip pan only now it’s made out of cast aluminum.

Will the cooking grate fit the original Phoenix Grill? Yes, the new cooking grid has the same specs as the original.

Will the gas valves work for the original Phoenix Grill? No, the valves do not have the same specs.

What if the ignitor is not clicking when the summary is pushed? The battery may need to be replaced. Unscrew the ignitor summary, and replace it with an AAA battery—positive end down.

Where do you find the serial number on your grill? The serial number is located on the left end cap of the control panel.

How do you clean the natural discoloration of the stainless steel? Discoloration and burnt-on stains can be removed with the MHP stainless steel cleaner (SCC). Follow the directions exactly on the back of the bottle and rub with the grain of the stainless. Never use steel wool to clean a stainless steel grill.

How do you clean the stainless steel on the outside of the grill? To remove the grease build up first use Simple Green, or a similar product, with a soft cloth rubbing with the grain. After grease is removed, use an oil-based stainless polish and a clean cloth, again rubbing with the grain.

Is discoloration of the stainless steel normal? Yes, discoloration from the intense heat and grease build-up is normal and is not covered under the warranty.

What temperature ranges can you expect from a Phoenix grill? Phoenix grills have an expected temperature range between 225˚ – 450˚. However, remember weather conditions factor into the performance of any grill.
