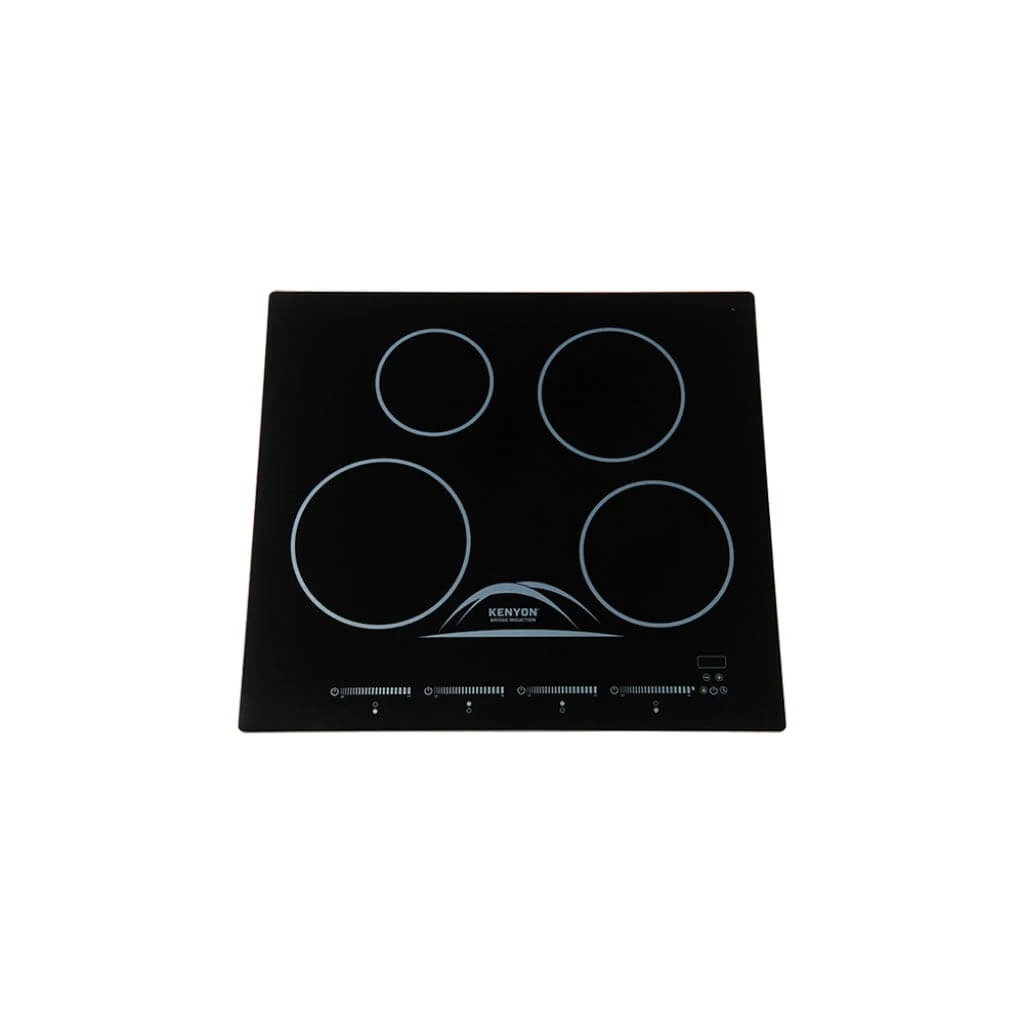

Bridge Induction with Touch Control

Expand your cooking options with the Bridge induction cooktop. Precision induction elements deliver high heat while providing consistent cooking results with greater energy efficiency and safety.  The optional patented SilKEN® mat covers the cooking area and provides spill retention, pot retention, glass top protection, quick heat dissipation an easy cleanup. Simply throw the mat in the dishwasher or sink. Easy-to-use Slide Touch Controls offer smooth, intuitive and precise power control. Bridge the two right burners together to maximize the cooking area and accommodate oblong pots and pans.

Features

• Smooth black glass with stainless steel graphics
• Round edged ceramic glass is durable and easy to clean
• “On” & “Hot” burner indicator lights
• Exceeds ABYC requirements for pot retention
• Easy-to-use Slide Touch Controls offer smooth, intuitive and precise power control
• With the Boost setting activated, easily achieve the maximum heating power to boil water faster
• Simmer setting allows for gentle cooking even for the most delicate of sauces and chocolate
• The Bridge setting simultaneously connects both burners to maximize the cooking area and accommodate oblong pots and pans
• Smart Timer – keeps food warm after completion (time out)
• Control-lock allows you to lock the cooktop to prevent small children from activating the controls
• Power sharing to ensure load does not exceed service
• The optional silicone mat protects the cooking area and is dishwasher safe
• Quick heat dissipation
• Energy efficient… yet powerful

Specifications

Item Number	B80405
UPC Code	617181007881
Series	Bridge Induction
Number of Burner	4
Voltage	240V
Width	21.75″
Depth	24″
Height	3″
Actual Weight	6 lbs
Est. Shipping Weight	9lbs
Plug	Pigtail Hardwire
Destination	Marine Use, Approved for Home Use
Burner System	Induction Burner System
Max Load	7000W
Color	Black

Technical Drawings & Dimensions

Warranty

	Lifetime rust-free guarantee on stainless steel
	3-year product replacement warranty

Documents & Files

• Owner’s Manual
• CAD Drawing
• Warranty Guide
