Fire Magic Grills are made by people who demand the best, for people who demand the best. Each and every Fire Magic product is made with passion and care by highly skilled craftsmen. Outdoor grilling equipment is all we’ve ever made.
Our grills are constructed of the highest quality, heavy gauge, and appliance-grade stainless steel. With unsurpassed attention to the most precise detail in design and construction, Fire Magic Grills are the most elegant, and the most durable barbecues available. They easily perform at the highest temperatures for the longest time of any outdoor barbecue grill. Unmatched performance and cooking versatility are yours when you own a Fire Magic Grill. Fire Magic’s superior technology and construction have set the standard for more than 75 years, and that’s still true today.

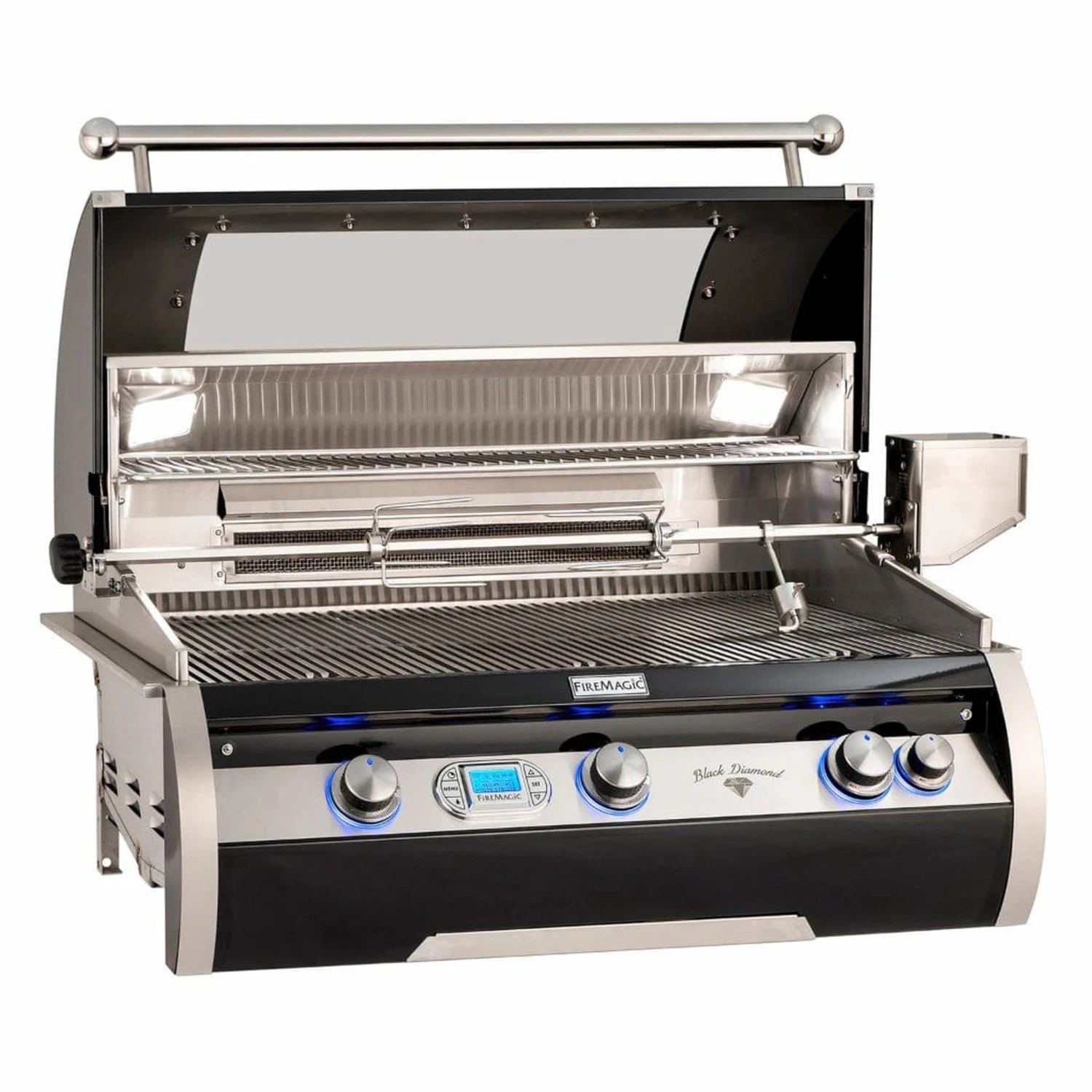

Echelon Black Diamond H790i
The Black Diamond Edition Grill Series showcases a porcelain-coated finish with satin stainless steel access. Featuring our top-of-the-line Fire Magic Echelon Diamond, this grill creates a fusion of performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and a Magic View Window, the Echelon Black Diamond Series redefines luxury in grilling.
Grill Features
|
Angled Halogen Internal Lights The Echelon Diamond E660 and E790 grills have 2 internal halogen lamps. The E1060 grill has 3 lamps.
|
|
Cast Stainless Steel Burners Burners Made of ¼” Thick Cast 304 Stainless Steel 304 grade burners weighing up to 12 lbs, featuring a lifetime warranty. Designed with a protective lip above the ports to prevent clogging from grease.
|
|

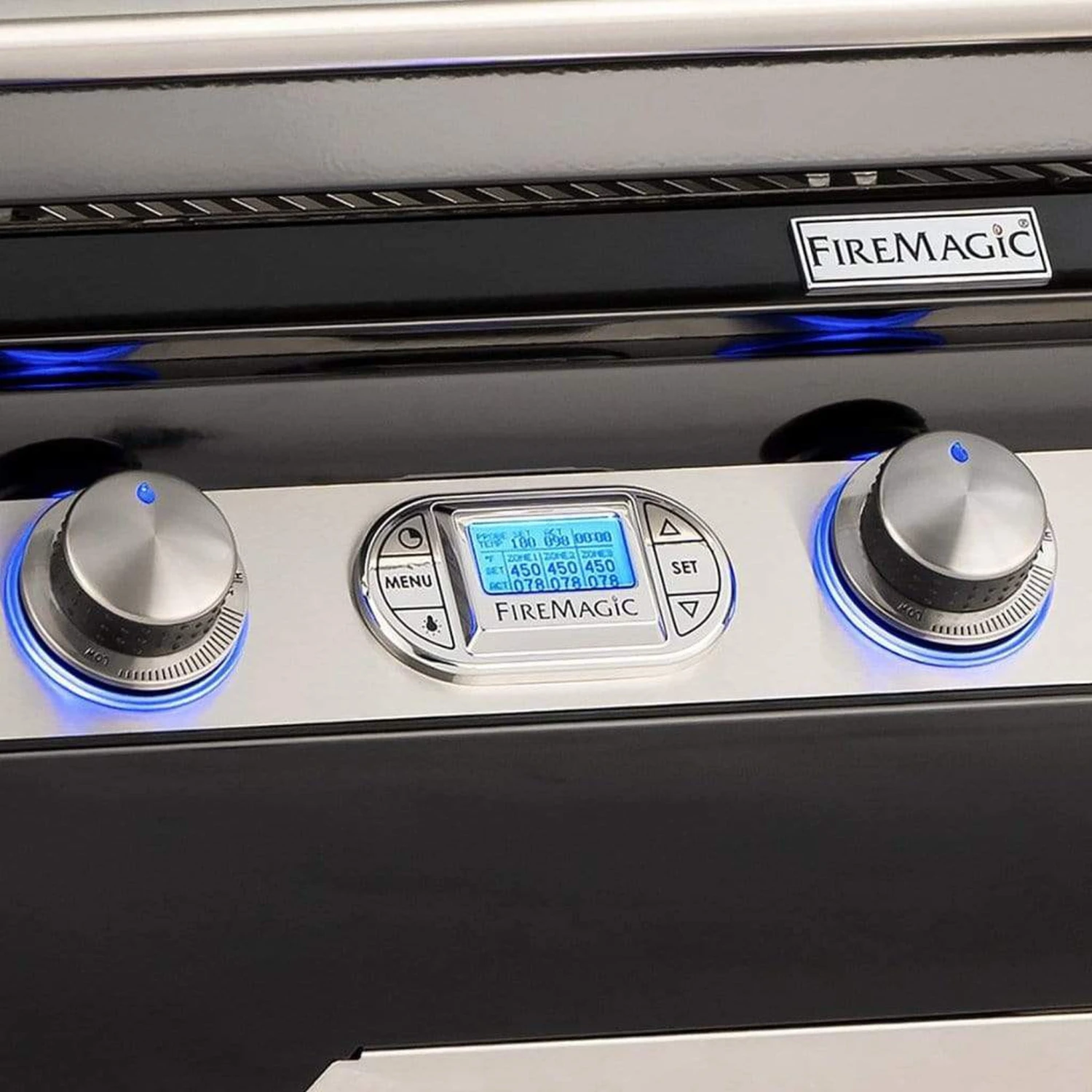

Chrome Digital Thermometer with Meat Probe State-of-the-art electronic thermometer display, with meat probe, has an impressive array of features including:
|
|
Comfort Touch Polished Knobs Smooth, seamless lines with polished highlights that feature back-lit knobs (at 41°) with comfortable touch grips and flame icons for convenience and safety (flame turns red when on). |
|

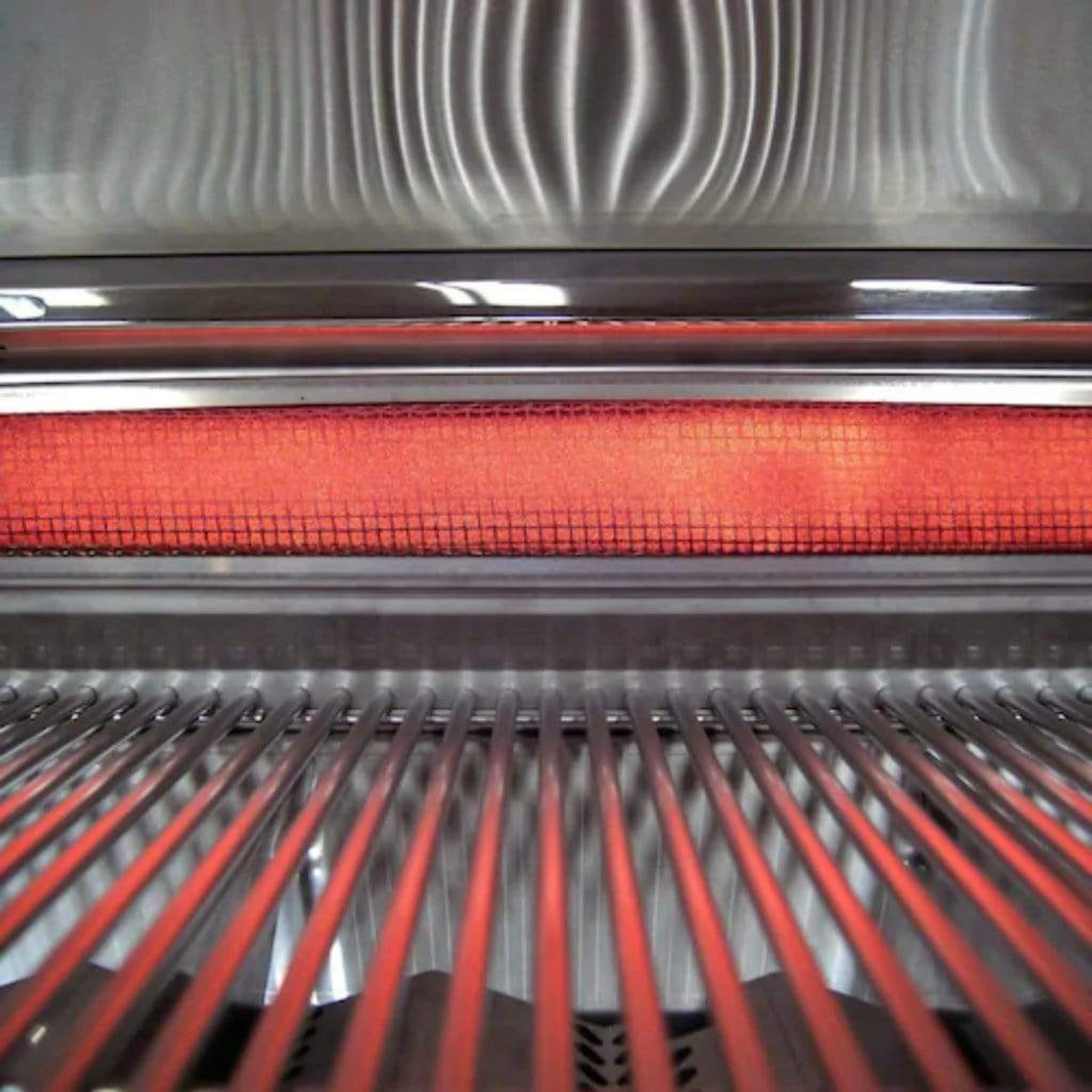

Recessed Infrared Backburner The Fire Magic Infrared Backburner is a stainless steel mesh-encased efficient ceramic system that provides much more BTU heat for quicker more efficient rotisserie grilling. It includes a Stainless Steel Cover to protect the back burner when not in use. |
|
Diamond Sear Cooking Grids Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented* design with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one-half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!
|
|

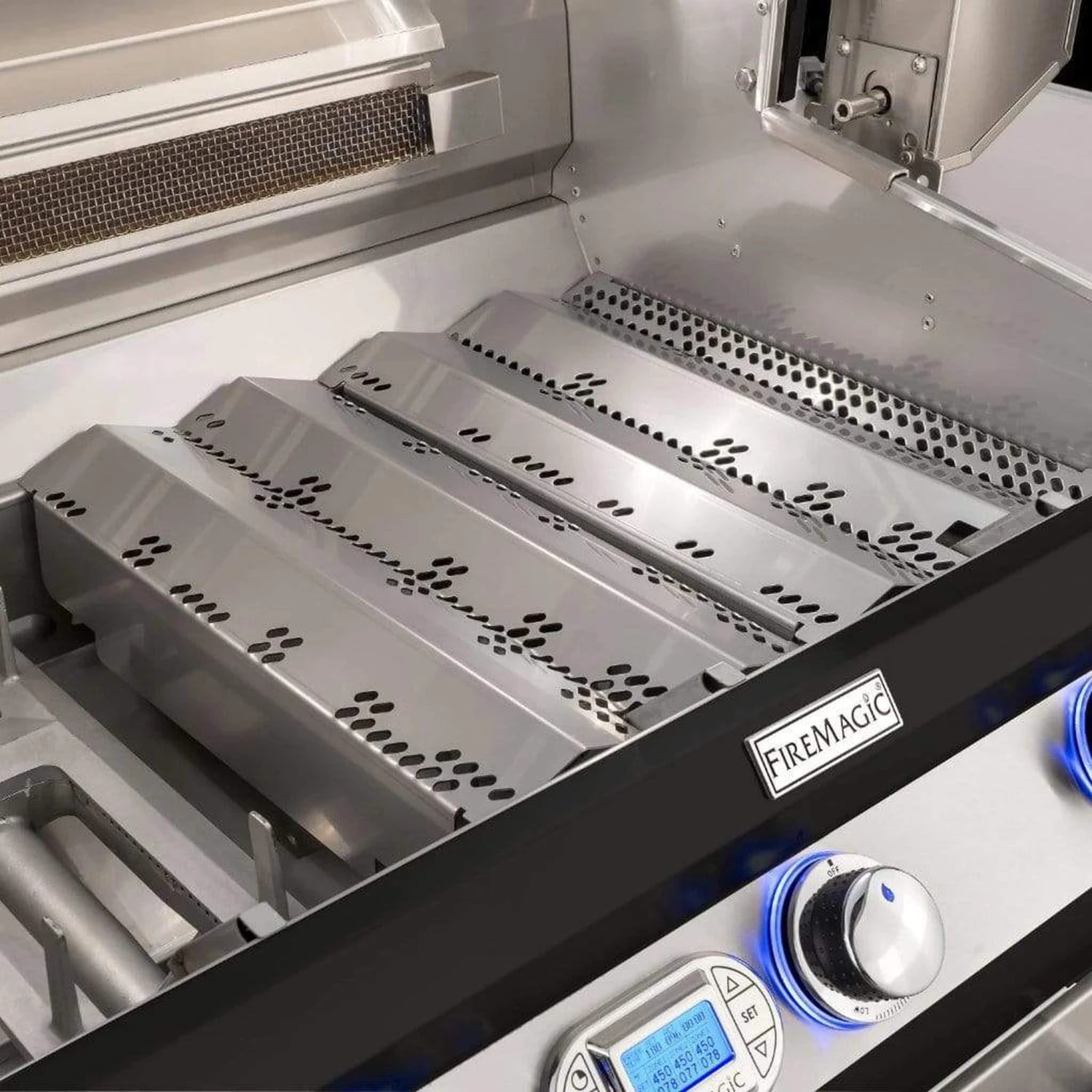

Flavor Grids Flavor Grids perform by allowing heat to rise unobstructed from the burner to the cooking grids. They disperse heat quickly and evenly flavor the food by vaporizing juices and minimizing flare-ups and grease fires. They are also easy to clean and maintain.
|
|
Echelon Drip Tray Built with ball bearings for easy glide. Perfect size for easy handling. Use Fire Magic drip tray liners for convenient cleanup. |
Additional Features
- Rotisserie kit included
- Back-lit control knobs
- Magic View Window to monitor foods without lifting the hood
Specifications
| Model Number | H790i |
| No. of Burner | 3 Cast Stainless Steel “E” Burners |
| Cooking area | 36″ x 22″ (792 sq. in.) |
| Warming Rack | 36″ x 8″ (288 sq. in.) |
| Grilling Area BTU | 96000 |
| Rotisserie Burner BTU | 13000 |
| Cutout Dimensions | 37″ (W) x 23.5″ (D) x 11.5″ (H) |
| Dimensions | 40.125″ (W) x 30.75″ (D) x 27.25″ (H) |
| Exterior Material | 304 Stainless Steel |
| Cooking Grate | Stainless Steel |

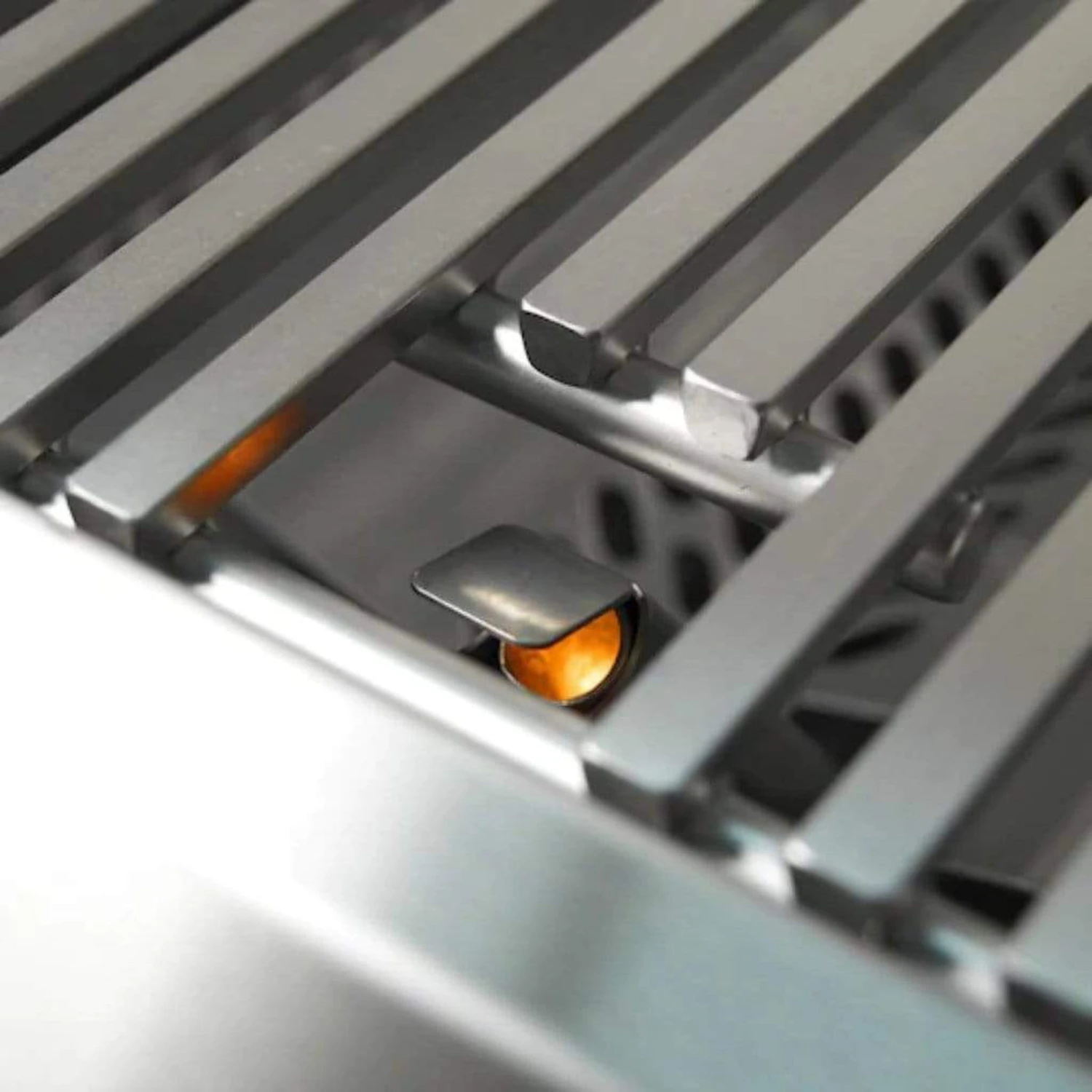

| Ignition | 120 VAC/12 Volt Hot Surface Ignition |
| Weight | 275 lbs. |
| Thermometer | Digital |
Optional Upgrades
Infrared Burner (Left)
|
Optional Accessories
Click to see the options
Grill Cover
| |
Porcelain Cast Iron Griddle
| |
Large Stainless Steel Griddle
| |
Small Stainless Steel Griddle
| |

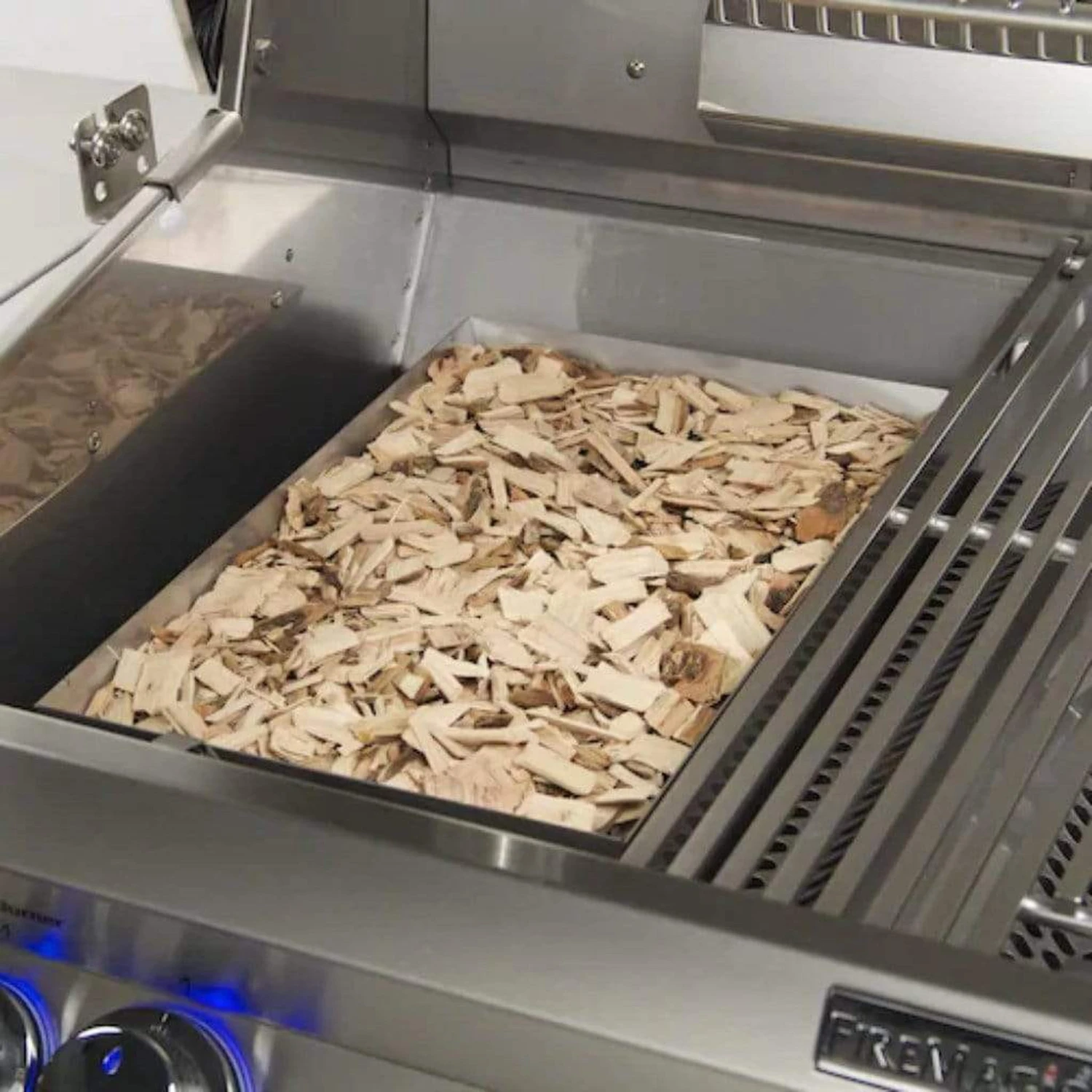

Charcoal/Smoker Basket
| |
Smoker Box w/ Adjustable Air Vent
| |
Warming Rack Extender
| |
Grilling Tray
| |
4-Piece BBQ Tool Set
| |
Pizza Stone Kit
| |
Wood Grill Scraper
| |
Turkey Frying Pot Kit
| |
Wok
| |
Foil Drip Tray Liners
|
Warranty
Fire Magic Grills offers a lifetime warranty for cast stainless steel burners, stainless steel cooking grids, and stainless steel housing. A 15-year warranty for brass valves, inner liners, manifold assemblies, porcelain housings (including ovens and barbecue faces), and backburner assemblies (excluding ignition parts). A 5-year warranty for flavor grids, infrared burners in the grill, and Charcoal stainless steel grills. A 3-year warranty for side burners and other Fire Magic grill components (excluding ignition and electronic parts). A 1-year warranty for ignition systems (except batteries), electronic components (including lights and thermometers), and grill accessories.
Downloads
- Owner’s Manual
- Product Specifications
Safety Information: See CA Prop 65 Warning for more information.
