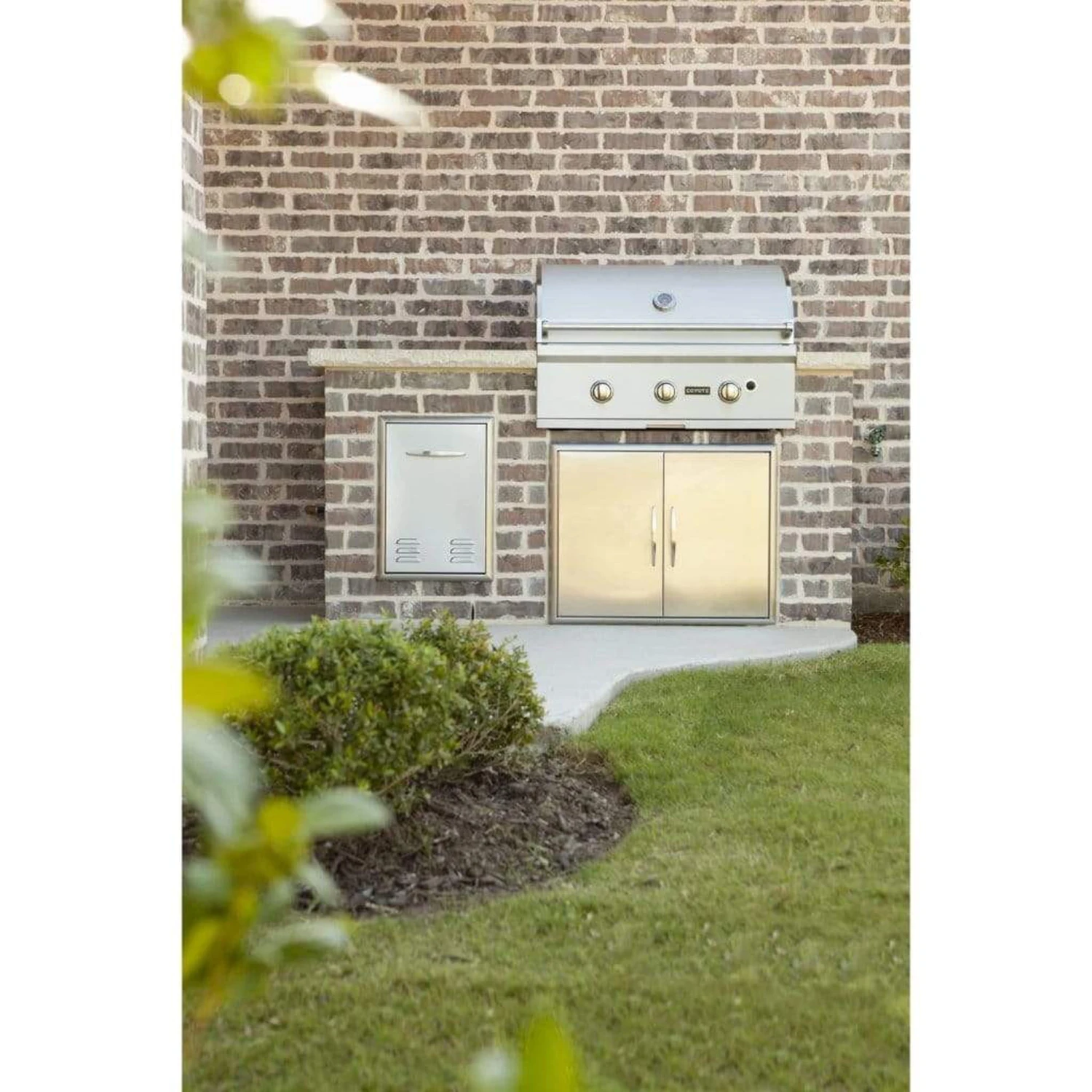

C-Series Grills

Coyote Outdoor Living’s C-Series grills are built to suit grillers of all types. All of our C-Series grills come standard with interior lighting for day or nighttime outdoor culinary pursuits.

What’s Included

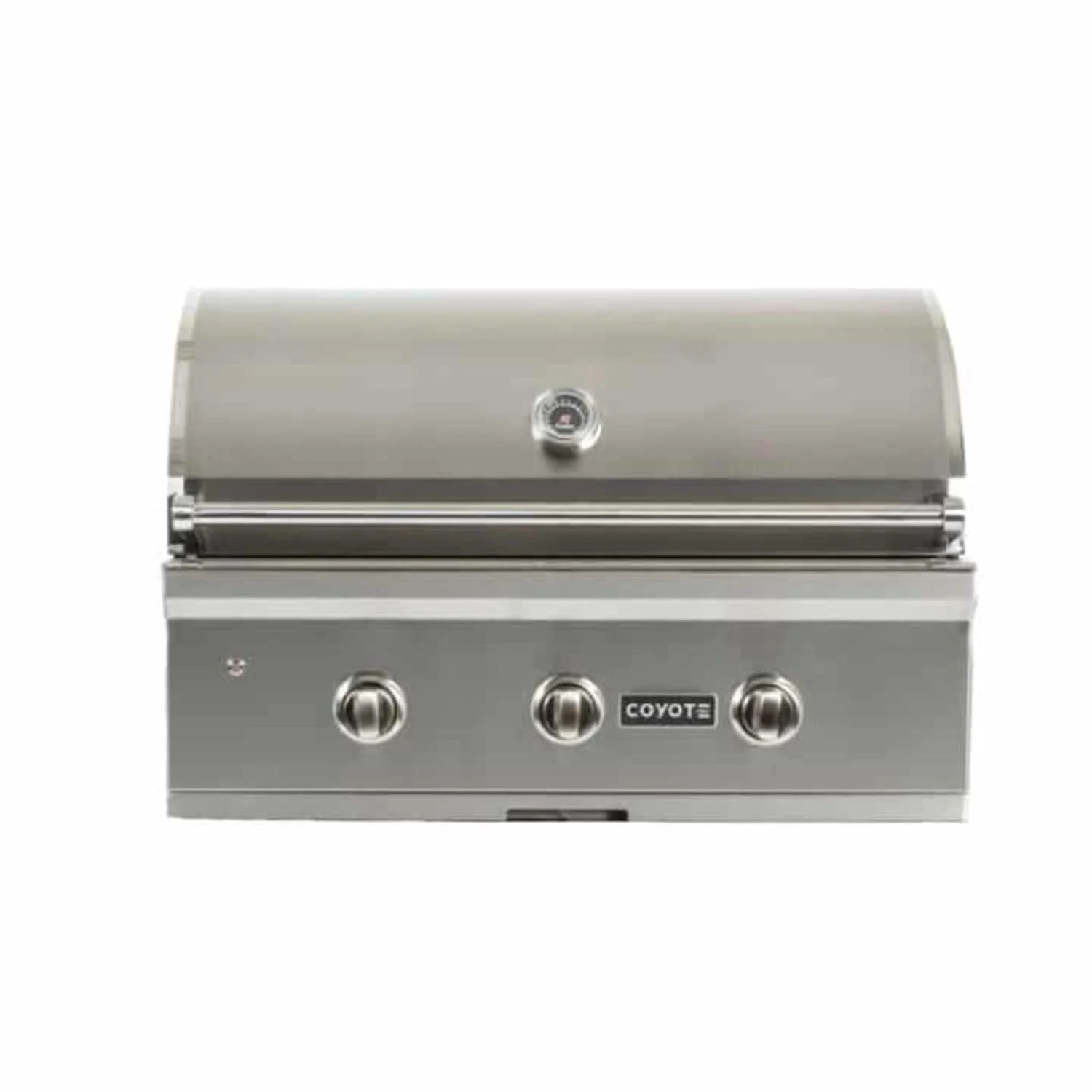

• 34″ C-Series 3-Burner Built-In Natural Gas Grill

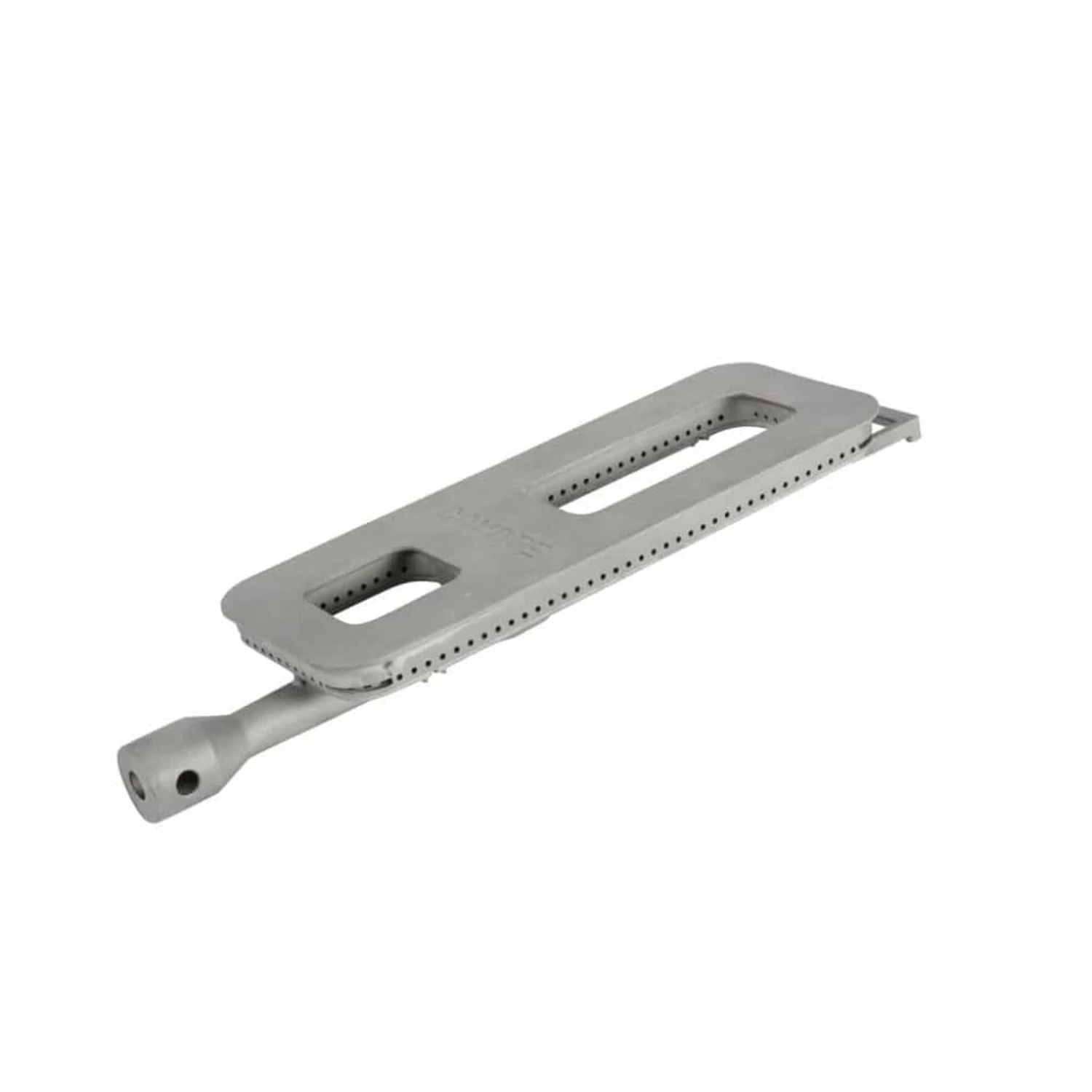

• 3 x High-Performance Coyote Cast SS Infinity Burners
• 1 x Hood Handle
• 2 x Handle Fixing (Left & Right)

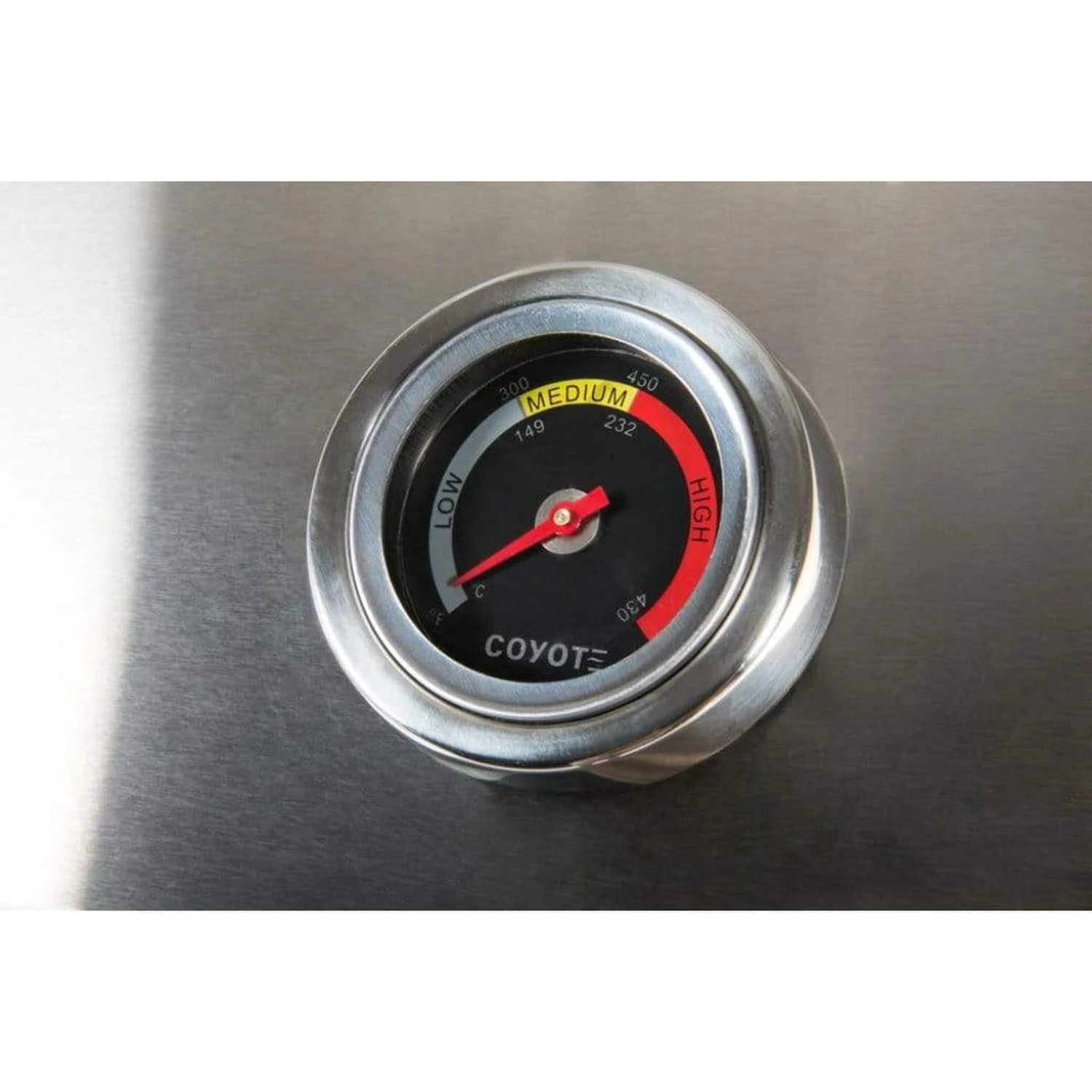

• 1 x Thermometer
• 1 x Thermometer Base
• 1 x Hood
• 2 x Rubber Stopper
• 2 x Hood Connector Hardware
• 2 x Light
• 1 x Lower Hood
• 2 x Warming Bracket (Left & Right)
• 1 x Warming Rack
• 1 x Firebox
• 1 x Grate – 18 Bar
• 1 x Grate – 19 Bar
• 3 x Flavorizer
• 1 x Flavorizer Bracket
• 1 x Firebox Bottom Cover
• 1 x Control Panel
• 1 x NG Gas Pipe
• 3 x Standard Valve NG
• 1 x Light Switch
• 1 x 3-Burner Light Wire
• 3 x Knob Base
• 1 x Drip Tray
• 1 x Drip Tray Front Bar
• 3 x Knob
• 1 x Logo Badge
• 1 x Gas Pipe Clamp
• 1 x Transformer
• 1 x NG Regulator
• 2 x Drip Tray Wheel
• 1 x Heat Resistance Barrier
• 2 x Ventilation Cover
• Owner’s Manual

Not Included (Sold Separately)

• Grill Cart
• Single Side Burner
• Insulated Jacket
• Vinyl Cover
• Rotisserie Kit
• Wind Guard
• Conversion Kit
• Cooking Grate
• Charcoal Tray
• Ceramic Briquette
• Island Vent
• Smoker Box
• Drop-In Griddle

Features

• Premium Fit and Finish:
  • Premium 304 Stainless Steel Construction
  • Double-walled Stainless Steel Hood
  • Corrosion and Color-fade Resistant
  • Ergonomic Handle

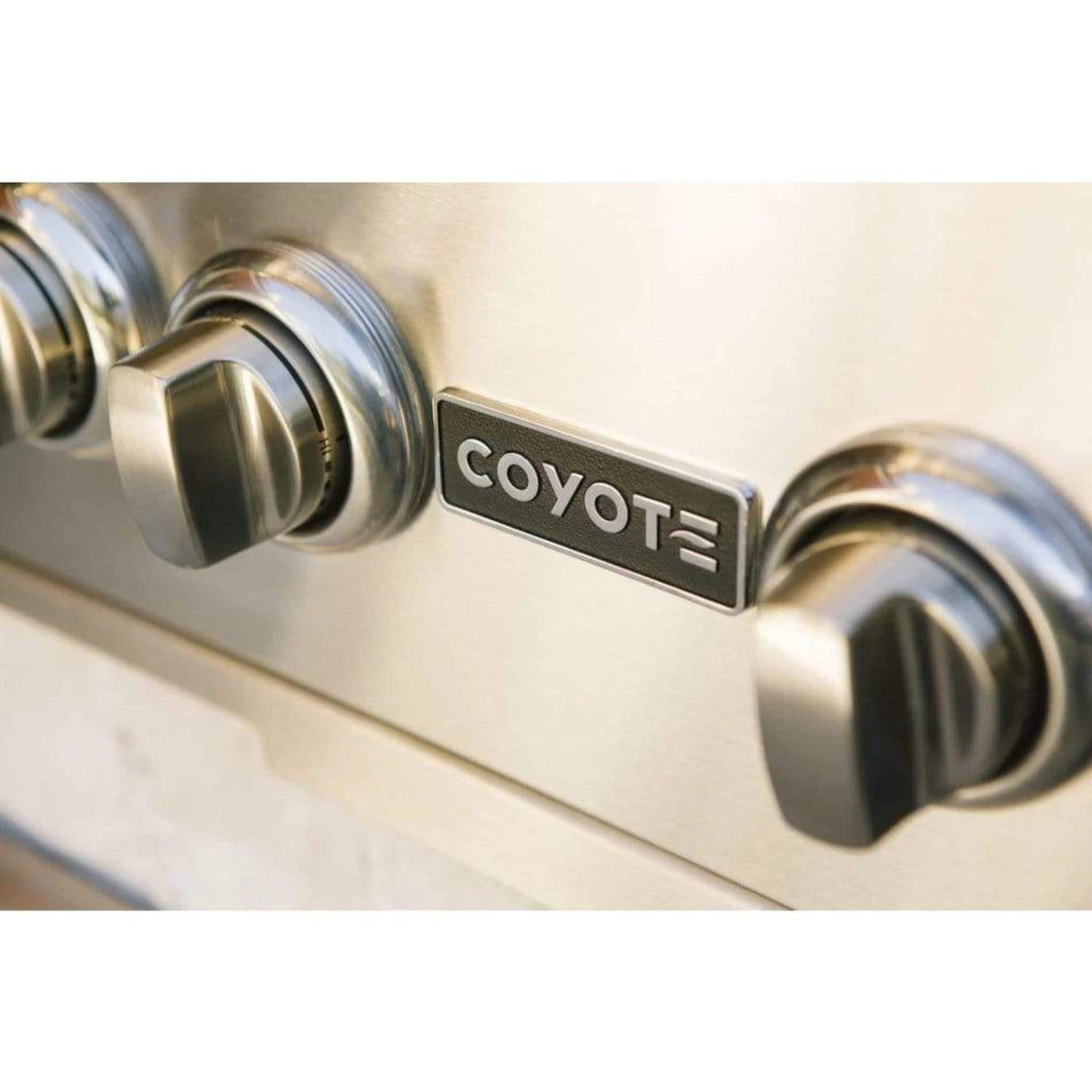

  • Nickel Alloy Knobs
  • Full Attention to all Finish Details
• Limited Lifetime Warranty on the Housing and the Burner
• Large Cooking Area on all Grill Models
• Fuel Efficient Cast Stainless Steel Infinity Burners and Premium Grates

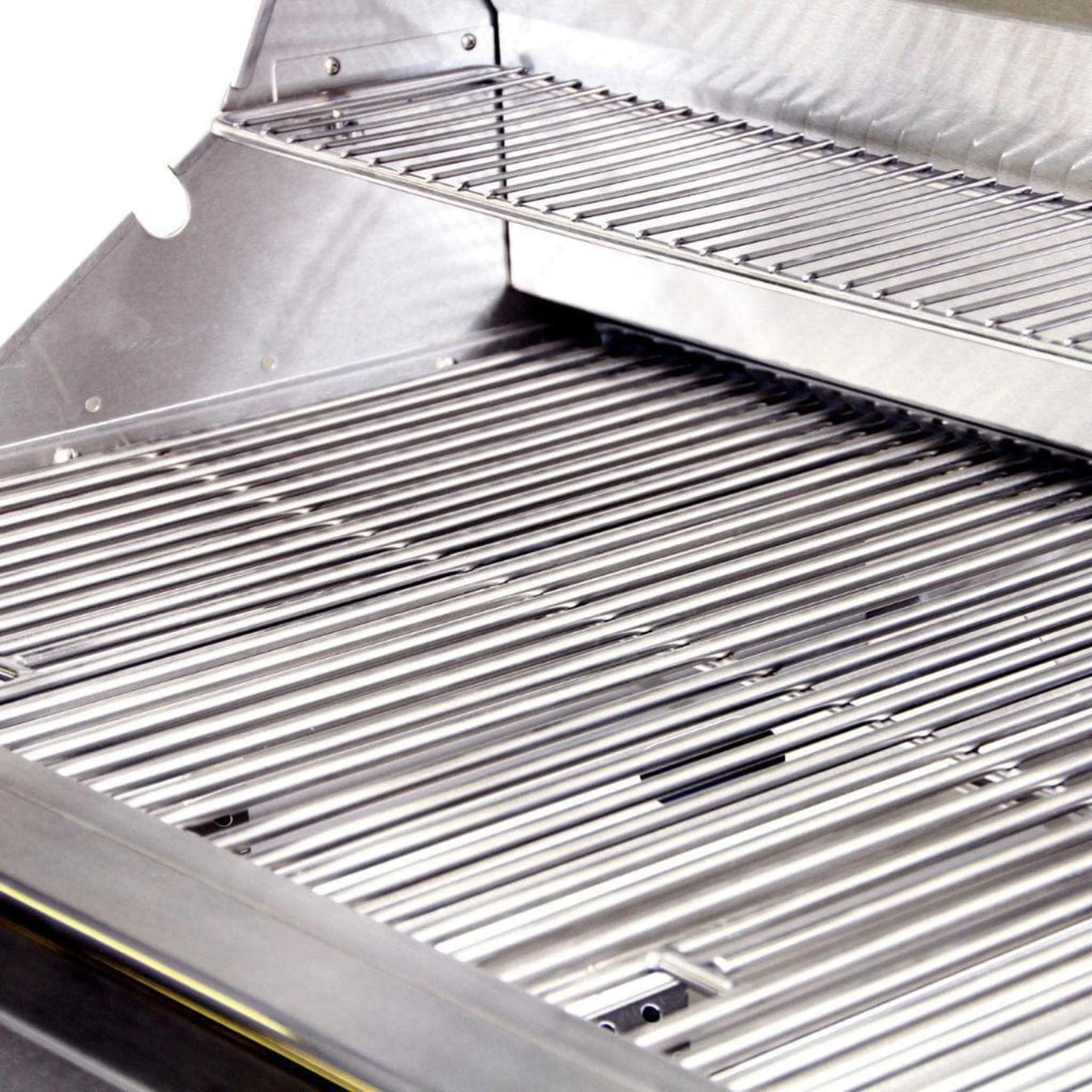

• Warming Rack and Performance Enhancing Heat Control GridsTM – Included on all Grill Models
• Interior Lights, Temperature Gauge, Electronic Ignition, and Removable Drip Tray – Included on all Models
• Independent Burner Ignition

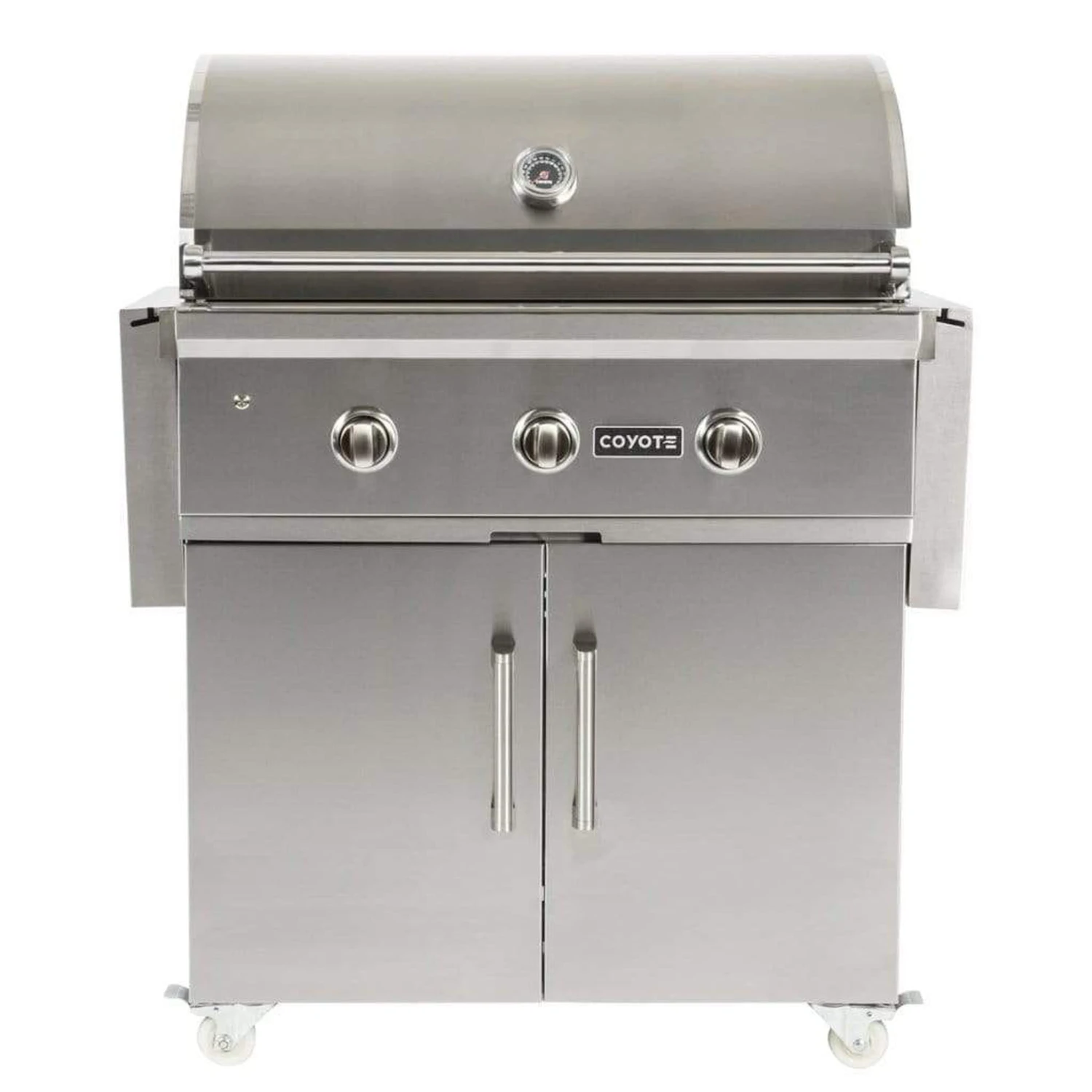

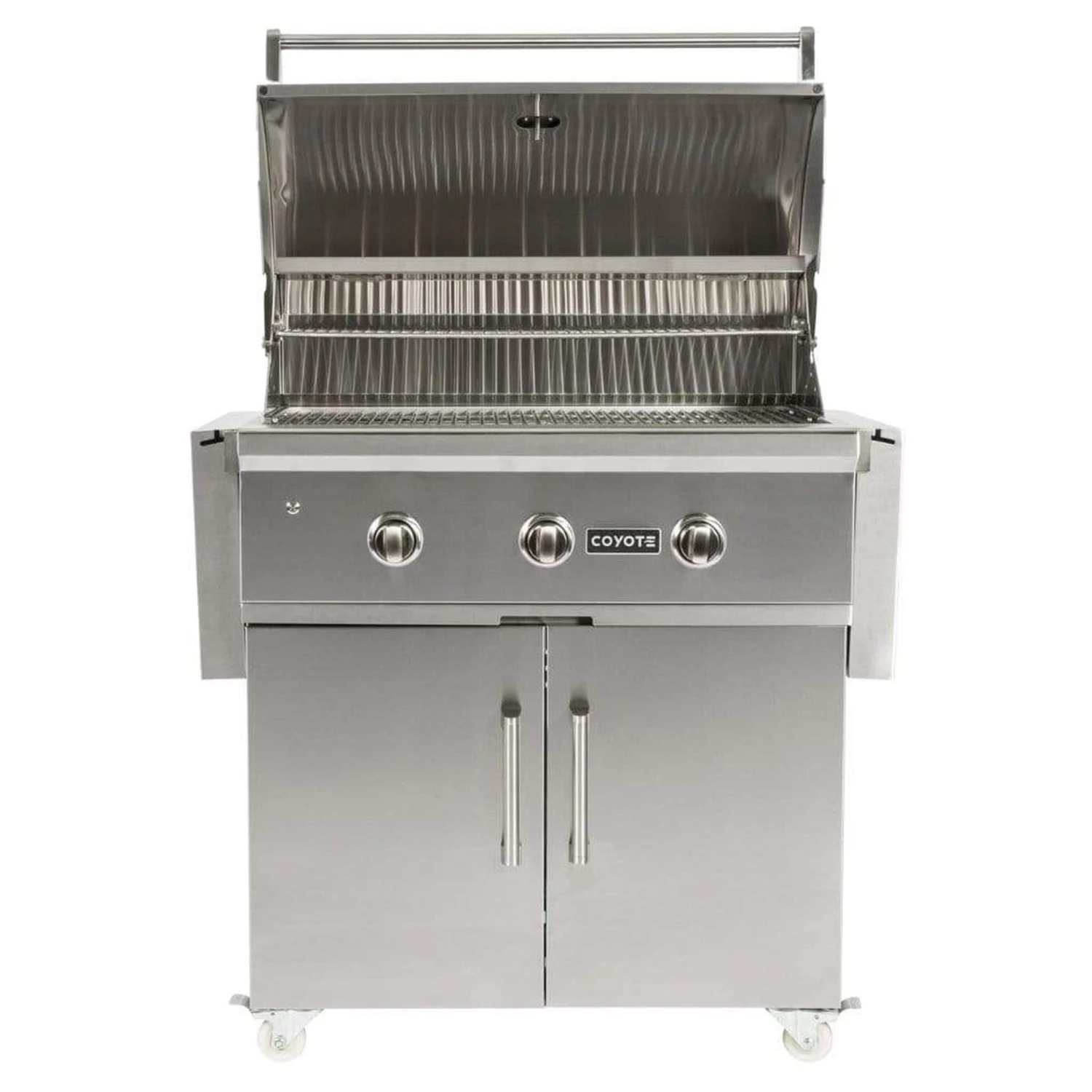

• Grill Carts
  • Commercial Grade

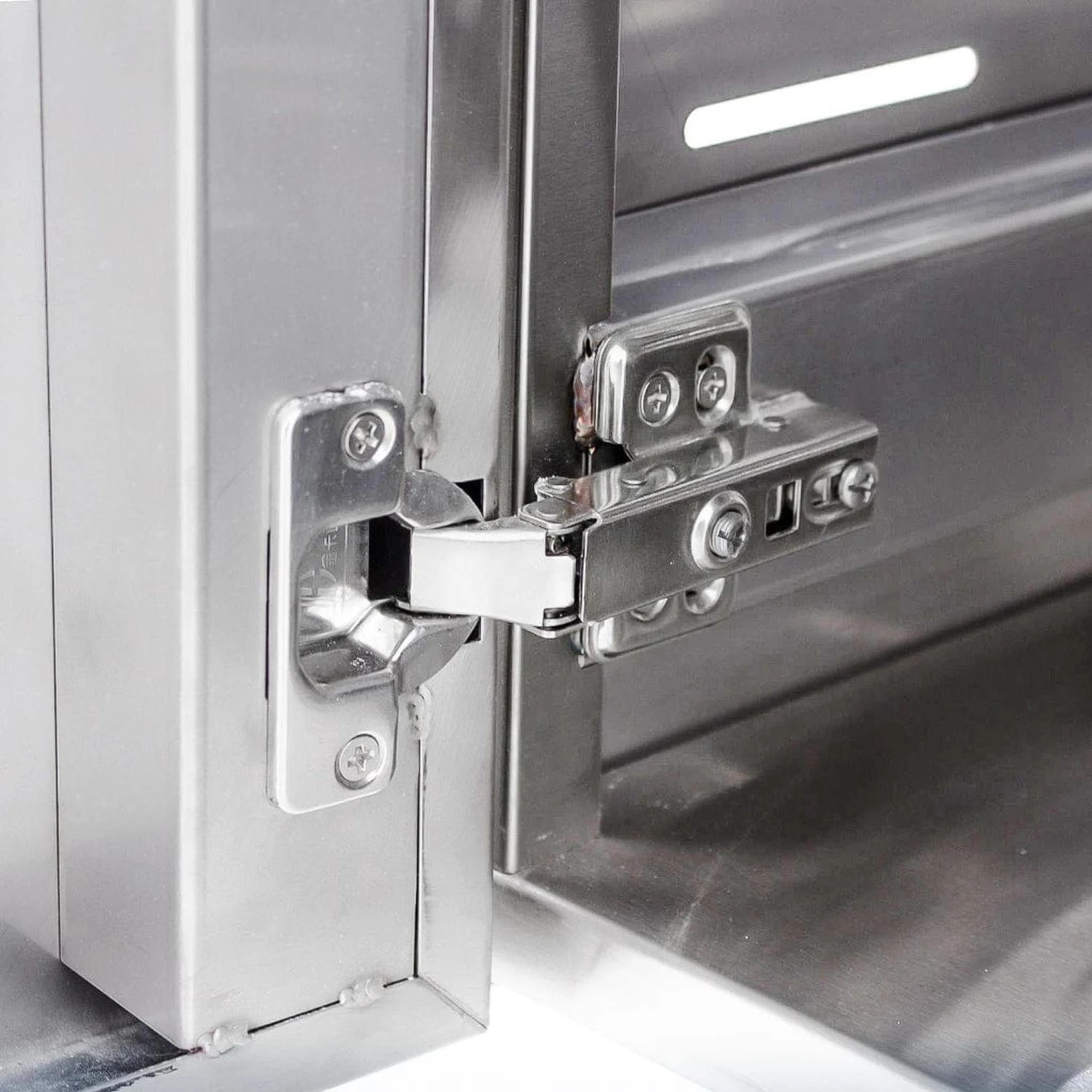

  • Self Closing Cabinets/Drawers – Pre-assembled
• Two individually and accurately controlled heat zones
• Heavy gauge food grade cooking surface allows for even heating and easy cleaning
• LED light safety feature indicates when gas supply is on or off
• Includes stainless steel cover for cooking surface
• Removable grease trap easy accessible
• Available as a built-in or freestanding
• Interior grill lighting / stainless steel heat control grids
• Optional wind guard
• Two High Performance Coyote Cast SS Infinity Burners
• Interior Hood Lights

Specifications

Model	C2C34
UPC	653341983206
Brand Name	Coyote Outdoor Living
Fuel Type	Natural Gas
Installation Type	Built-In
BTU	60,000
Cooking Area	765 sq. in.
Material	304 Stainless Steel
Regulator	1/2″ Female Pipe
WC Pressure	4″
Max PSI	.5 PSI
Electrical Requirements	Qty 1 – 120 VAC 60 Hz Grounded Plug
Cutout Dimensions	31 (W) x 20 1/2” (D) x 10 1/4” (H)
Overall Dimensions	34” (W) x 25 1/2” (D) x 23” (H)

Technical Drawings and Dimensions

Warranty

	Limited Lifetime Warranty Stainless Steel Burners (no rust or burn-through); Stainless Steel Frame/Housing
	5 years (Limited) Cooking Grids (no rust or burn-through)
	2 years (Limited) Heat Control Grid (no rust or burn through); Electric/Plastic Components
	1 year (Limited) Ignition Systems/Valves
