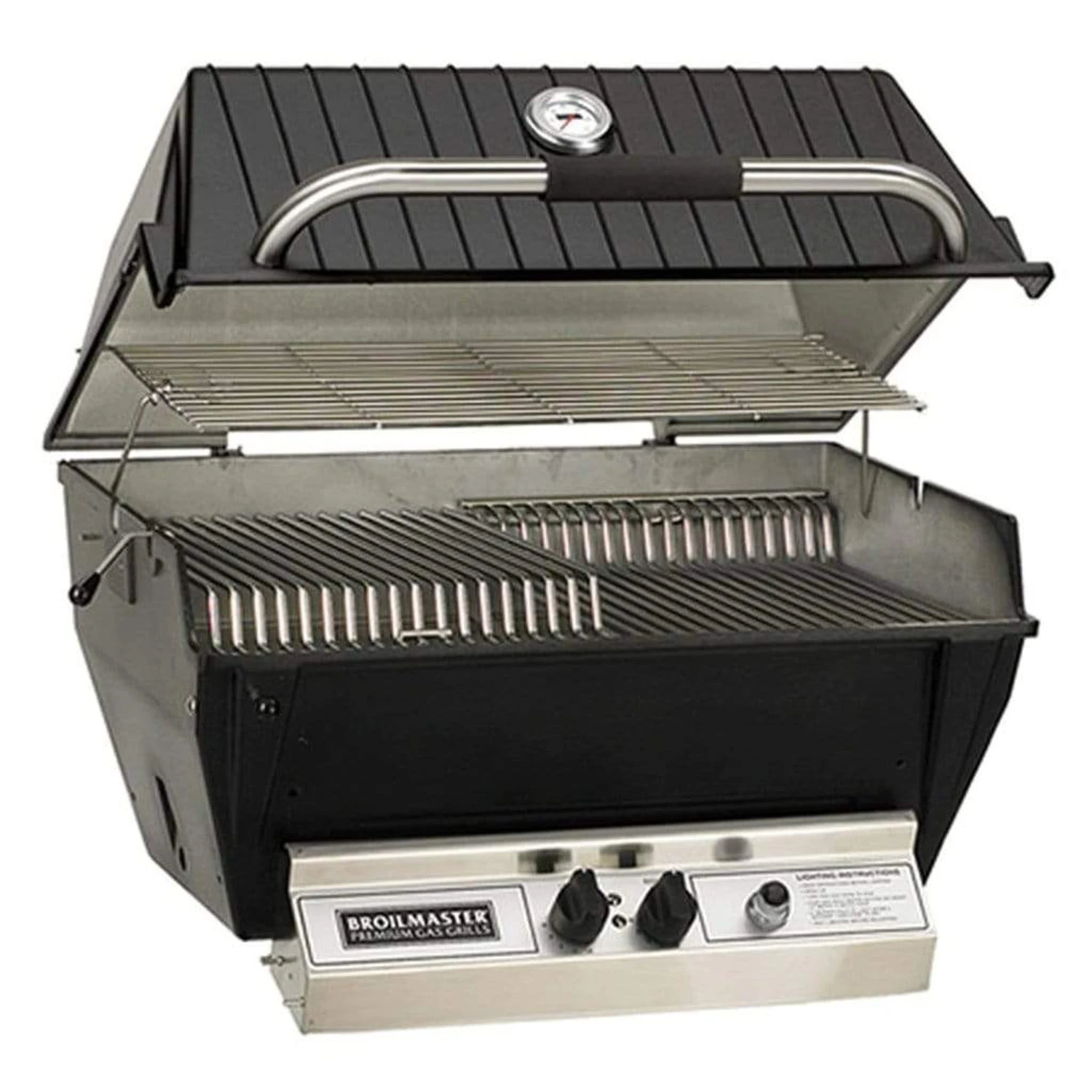

The Broilmaster Premium P3X gas grill features the Bow Tie Burner for exceptional heat distribution and up to 40,000 BTUs. With a durable cast-aluminum exterior construction, the Broilmaster Premium P3X gas grill is built to last. A total of 695 square inches of total cooking area, several standard features, and optional accessories provide a variety of cooking options for any size crowd.
What’s Included
- Gas Grill Head Assembly
- Stainless Steel Cooking Grid
- Stainless Steel Folding Retrack-A-Rack
- Char-Master Briquets
- Briquette Grate
- Stainless Steel Bowtie Burner
- In-Ground Post
Not Included (Sold Separately)
- Grill Cart
- Side Shelf
- Flavor Enhancer
- Gas Conversion Kit
- Side Burners
- Rotisserie Kit
- Grill Cover
- Griddle
- Smoker Shutter
- Diamond Patterned Cooking Grid
- Grid Lifter Kit
Features
- 695 Sq. In. of Total Cooking Area
- Heavy-Duty Cast Aluminum Construction
- 40,000 BTU
- “8” Shaped Stainless Steel Bowtie Burner
- Multi-level Stainless Steel Cooking Grids
- Stainless Steel Control Panel
- Stainless Steel Folding Retract-A-Rack
- Charmaster Briquets
- Fits all Broilmaster Mountings

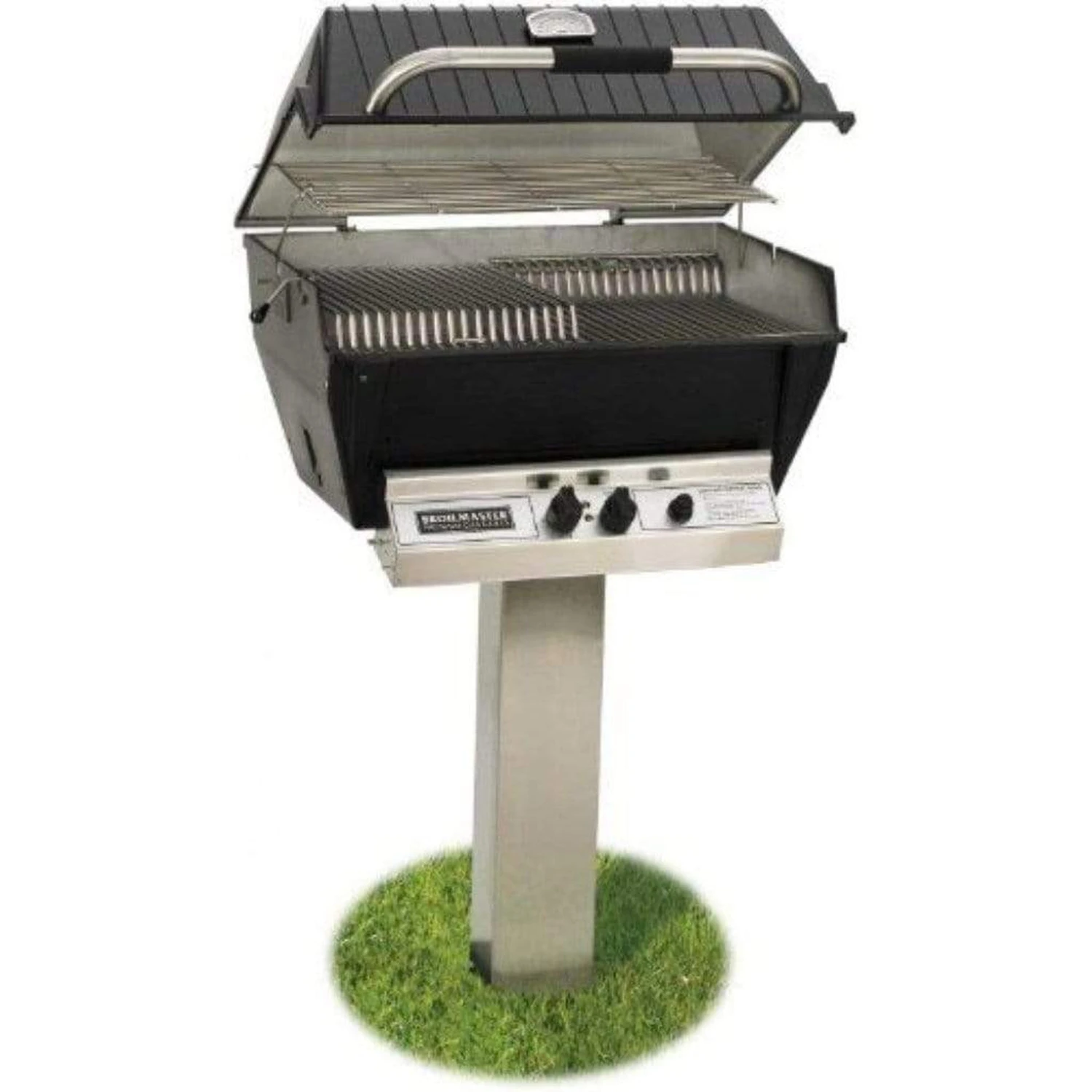

Post Features
- Durable, rust-resistant stainless steel construction
- Compatible with Broilmaster P3 & P4 series grill heads
|
Heavy-Duty Cast Aluminum Construction Designed to Last and Maintain Cooking Temp |
|
|
Stainless Steel Bow Tie Burner Evenly Distributes Heat Across the Cooking Area |
|
|
Multi-Level Stainless Steel Cooking Grids Provide Control Over Food Distance To The Flame
|
|
|
Stainless Steel Folding Retrack-A-Rack Serves as an Added Cooking Level and Retracts For Additional Cooking Space |
|
|
Char-Master Briquets Maximize Heat Distribution and Burner Protection
|
|
|
Stainless Steel Control Panel Separate Left and Right Controls For Indirect Cooking, Grilling, and Roasting |
Specifications
| Model | P3X |
| Fuel Type | Propane |
| Maximum BTU Output | 40,000 |
| Total Grilling Area | 695 Sq. Inches |
| Primary Cooking Dimensions | 26 3/4″ W x 17″ D |
| Color | Black |
| Item Weight | 76 lbs. |
| Overall Dimension | W 26 3/4″ x D 18 3/4″ x H 20 1/2″ |
| Main Burner Configuration | Conventional |
| Number of Main Burners | 1 Burner |
| Ignition | Electronic/Continuous Battery Powered Push Button |
| Cooking Grid Material | Stainless Steel |
| Warming Rack Material | Stainless Steel |
| Burner Material | Stainless Steel |
| Grill Exterior Material | Cast-Aluminum |
| Post Material | Stainless Steel |
| Post Weight | 8.3 lbs. |
| Post Dimension | 6″ × 4.5″ × 48″ |
Warranty
|
LIMITED LIFETIME Against Rust-through |
Aluminum Grill Housing (except paint), Stainless Steel Cooking Grids and Stainless Steel Griddles, Select Stainless Steel Components – Cart, Mounting, Bow Tie Burner, Side Burner (DPA150), Side Burner (DPA151), Side Shelf (DPA153), and Warming Rack, Stainless Steel Built-In Components – Built-In Kits for 3-Series Grill Heads, Side Burner Surround (DPA152), Door Kit, Tilt-Out LP Tank Door, and Vent Register Kit |
|
10 YEARS – Against Rust-through |
Stainless Steel Burners for H-Series and R3B |
|
5 YEARS – Against Rust-through |
Infrared Burners on R3 and R3B, and Side Burner (DPA151), Flare Busterâ„¢ Ceramic Flavor Enhancer, Painted Electro-Galvanized Steel Components, Stainless Steel Smoker Shutter |
|
2 YEARS – Against Rust-through |
Porcelain Coated Steel Briquet Racks, Chrome-Plated Warming Rack, Stainless Steel Flavor Screen, Stainless Steel Heat Shield |
|
1 YEAR – Against Rust-through |
Valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets, and all other parts and accessories – including those made from stainless steel – unless specified above, paint on aluminum grill head |
Documents & Files
- P3X Owners Manual
- Broilmaster Brochure
- Post Owner’s Manual
- Cart With Door Owner’s Manual
- Cart With Base Owner’s Manual
- Solid Surface Front Shelf Kit Owner’s Manual
- Solid Surface Drop-Down Shelf Kit Owner’s Manual
- Flare Buster Flavor Enhancer Owner’s Manual
