Features

System

• 60,000 BTU stainless steel Dual-Tube™ burner system
• 10,000 BTU Infrared side burner
• 15,000 BTU stainless steel rear rotisserie burner
• Premium rotisserie kit included
• 1,030 sq. in. total cooking space including porcelain-coated warming rack
• 750 sq. in. / 3,225 sq. cm. primary large cook box
• 250 sq. in. / 1,613 sq. cm. primary small cook box
• Two completely separate cook boxes
• Large cook box: Solid 9 mm stainless steel rod grids
• Small cook box: Heavy-duty cast iron cooking grids
• Infrared side burner: 8 mm stainless steel rod grids
• Six stainless steel Dual-Tube™ burners
• Stainless steel Flav-R-Wave™ cooking system
• Linear-Flow™ valves with 180° sensi-touch™ control
• Sure-lite™ electronic ignition system
• Two Deluxe Accu-Temp™ thermometers

Design

• Stainless steel hood panel and cook box with cast aluminum end caps
• Stainless steel control panel and side shelves with cast aluminum condiment bins
• Enclosed black cabinet base with stainless steel cabinet doors
• Heavy-duty locking, swivel casters with level setting
• COB handle-mount grill light included

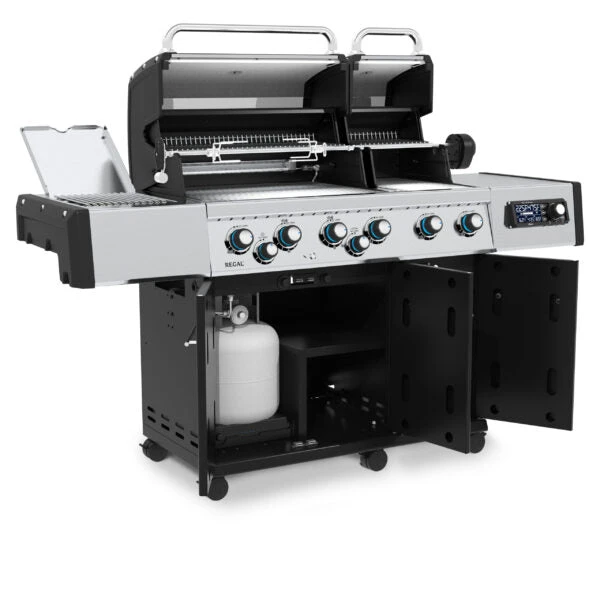

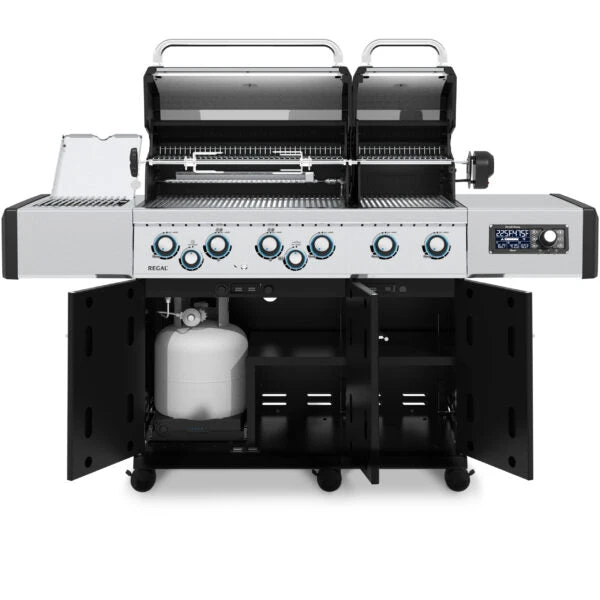

• Propane models have a pull-out tank drawer for easy changes
• Built-in control panel lights

Fuel Options

• Natural Gas (NG) – 10ft natural gas hose included.
• Propane (LP) – designed for use with 20lb tank – not included.

Specifications

Item Number	BK689244

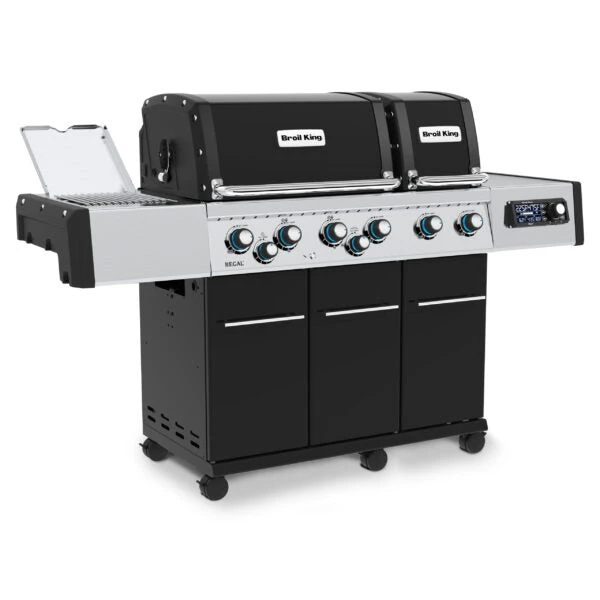

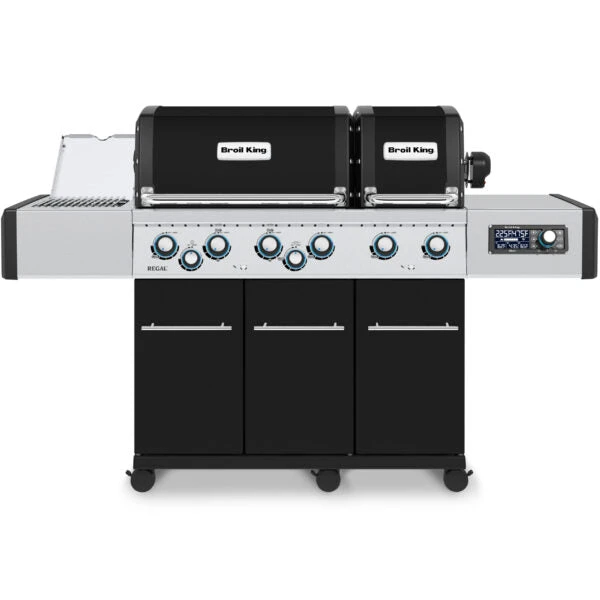

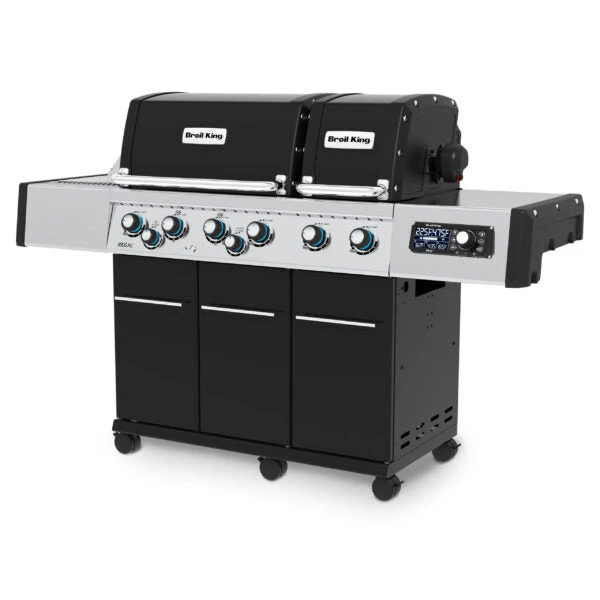

Model	Q Regal 690 Pro IR
Fuel Type	Liquid Propane
No. of Burners	6
Main Burner Output	60,000 BTU
Infrared Burner	10,000 BTU
Rotisserie Burner	15,000 BTU
Primary Cooking Space	750 SQ. IN.
Dimensions	49.2″ (H) x 70″ (W) x 24.8″ (D)
Weight	270 lbs.

Warranty

We reward quality. This Broil King® features a Limited Lifetime Warranty on the entire cookbox, 15 years on Dual-Tube™ burner system, and 15 years top to bottom, on all remaining parts and paint.

Documents & Files

• Assembly Manual
• Owner’s Manual (LP)
